Jones H-Bar Butted Loop Alloy

Unconventional handlebars for better handling and more comfort than a traditional bar

SKU

JHBALB710

Price

$289.90incl GST

or 6 weekly payments of $48.32incl GST with

Availability

Out of stock

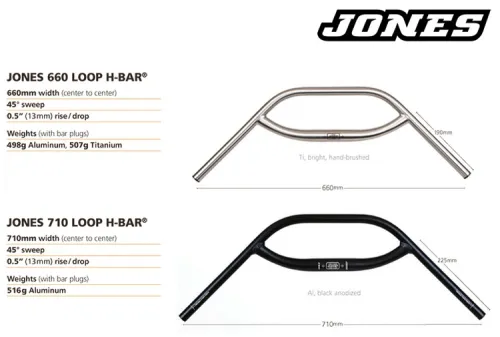

The Loop Aluminium 710mm H-Bar is our most popular H-Bar.  If you're new to the H-Bar, this is the model that we tend to recommend first because its loop design has the widest range of hand positions, its aluminium construction gives the best value, and its 710mm width not only gives you the full range of positions, but allows you to cut it down to the original 660mm width (using the laser-etched cut guides) if you decide that you want something narrower.

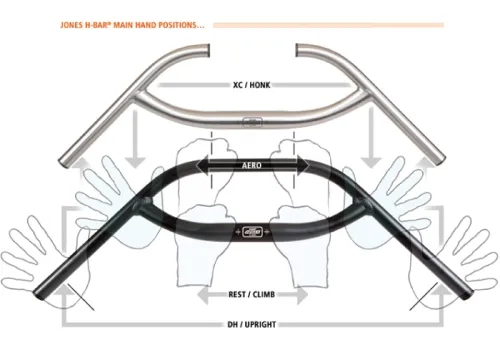

The cross bar on the Loop H-Bar sweeps forward to allow the levers to go behind the cross bar instead of in front. This gives longer uninterrupted hand positions and will allow trigger and grip/twist shifters to fit on the rearward extensions. The continuous front loop of the bar enhances stiffness and is good for additional aero hand positions and mounting lights, GPS devices etc. This bar provides comfort and power with an impressive weight. With the levers in the optimum position you get a wide range of hand and body positions, from fully upright at the ends of the grips, to a tucked aero position when resting your forearms across the crossbar and loop.  In between these extremes, there are many unique and useful positions, making this a true multi-position bar because you'll actually find yourself using all of the positions! The rearward extensions allow extra leverage and a wider hand position - be it for comfort or power. All H-bars are for a 31.8 stem and the crossbar is now tapered and butted with a 31.8 mm clamp area. The grip tubes on the aluminum version are also butted for strength and weight savings.  All H-Bars have a standard 22.2mm diameter grip area.

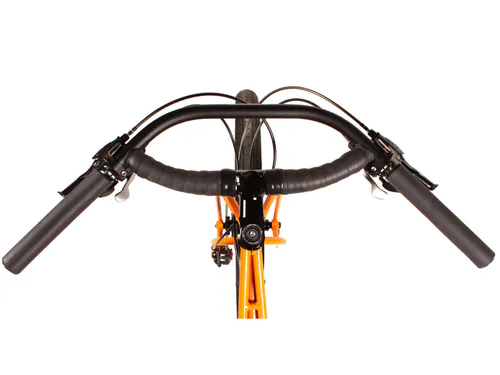

Try wrapping the crossbar with bartape!  You can wrap both the crossbar and loop (but it helps to leave a gap in the center of the loop to mount whatever gadgets you have), if you want to have the most hand positions!


Specifications

525 grams for the 710
Butted loop, butted and tapered main crossbar
Black Loop H-Bars are bead-blasted and then black anodized for a slightly matte, lightly-textured black finish.


Great for; Mountain bikes and road bikes, Fat Bikes, Touring, Bikepacking Adventures, Singlespeeds, City Riding and more!
Compatible with; Trigger shifters, Gripshift, Shimano twist shifters, Rohloff, (hinged) thumb-shifters and Singlespeeds.


ESI Chunky and Extra Chunky grips are also available custom cut to 205mm (8.25") for the new 710mm Jones Loop H-Bars (The normal grip length from ESI is 130mm (5.125"). Grips for the 660mm Jones Loop H-Bar need to be cut to 170mm (6.75").


For set up tips, check out the Jones H-Bar user guide


What Bars is a very useful website that will help you visualise different forward and backwsweeps, allowing you to compare an ever increasing number of different handlebars as an overlay.
