Revelate Designs Tarsier Cargo Cage

* We have the new Tarsier coming soon, click on the "email me when back in stock" link above to be notified.

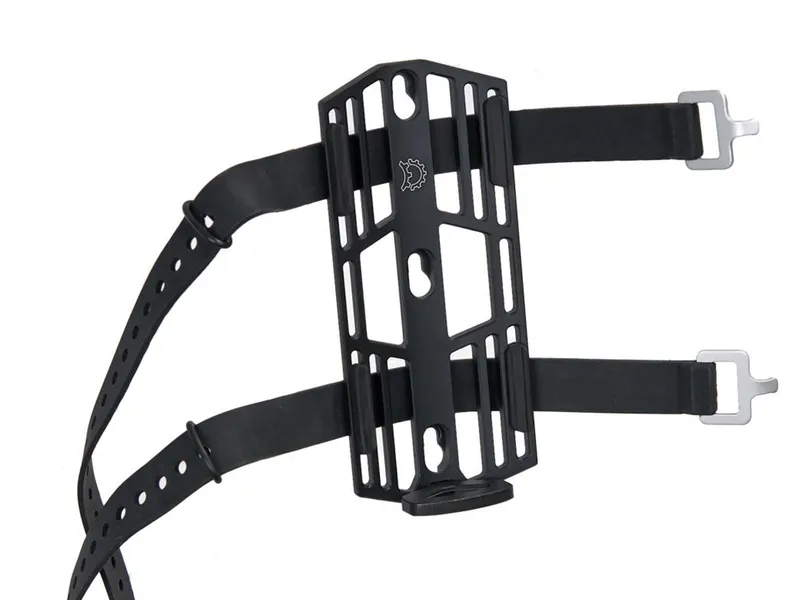

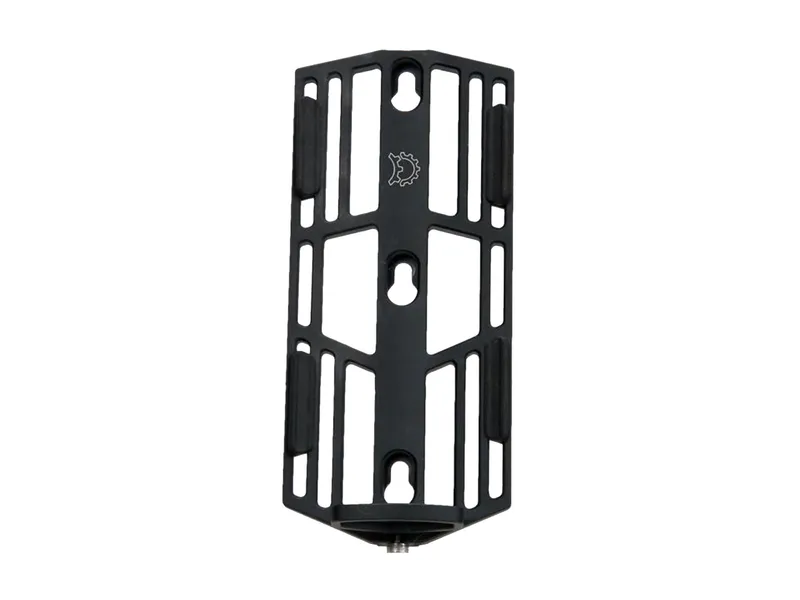

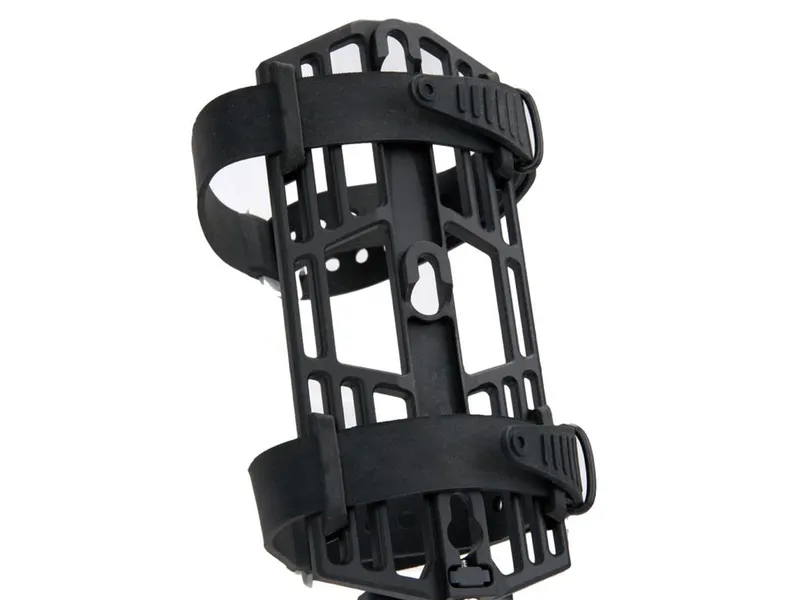

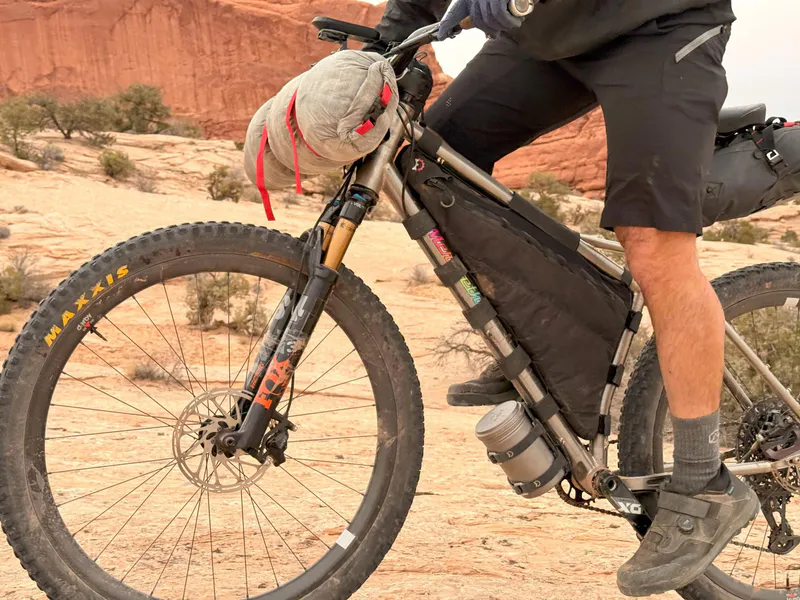

The Tarsier Cargo Cage expands your carrying capacity on 3-bolt fork or frame mounts.  It brings a fresh set of features to a familiar platform.

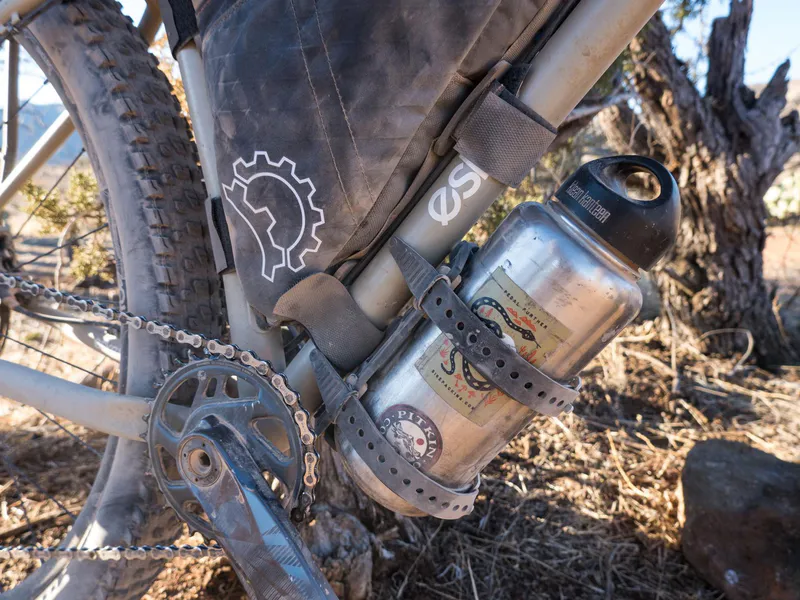

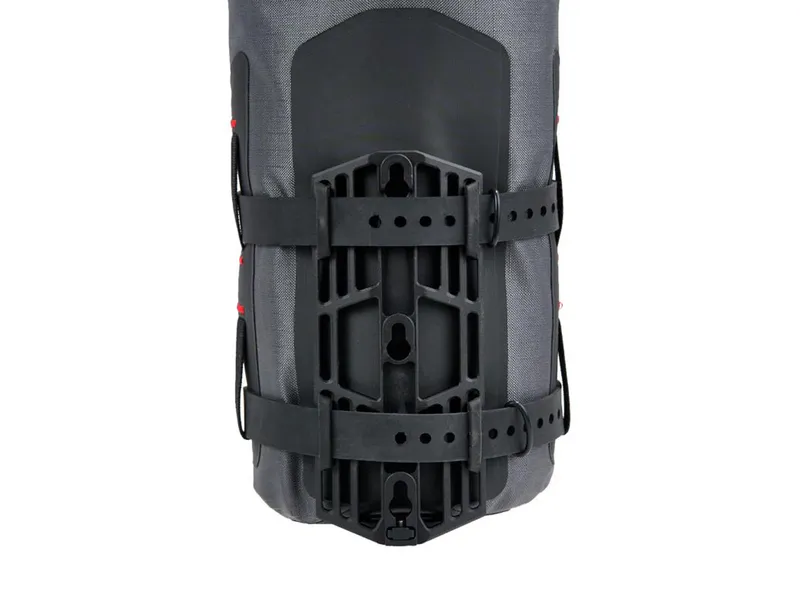

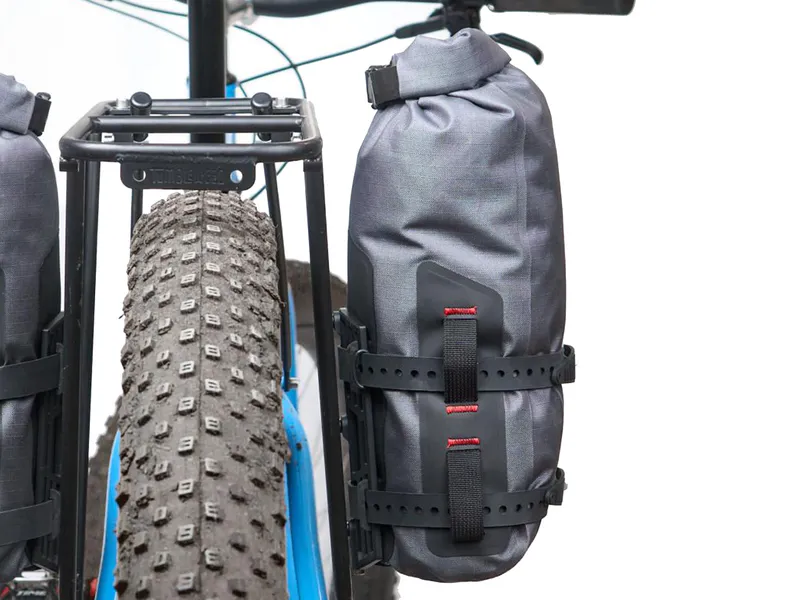

Revelate Designs designed the Tarsier with our Polecat dry bags to create a complete system. The Tarsier’s minimal profile is also optimised to carry a variety of hard and soft-sided loads.

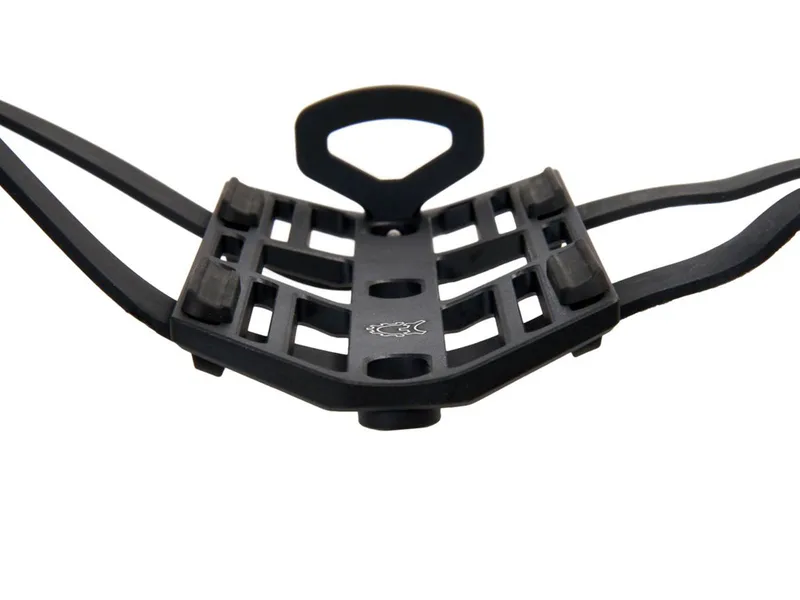

At the core of the Tarsier are pairs of integrated, adjustable TPU pads that cradle hard-sided bottles and canisters securely and quietly. On the back of the cage, the pads also act as strap guides: they hold the included 450mm straps securely in place when unloaded. As opposed to cages with straps threaded through the frame, the Tarsier’s straps wrap around the entire platform, maximizing cage-to-cargo contact for ultimate stability.

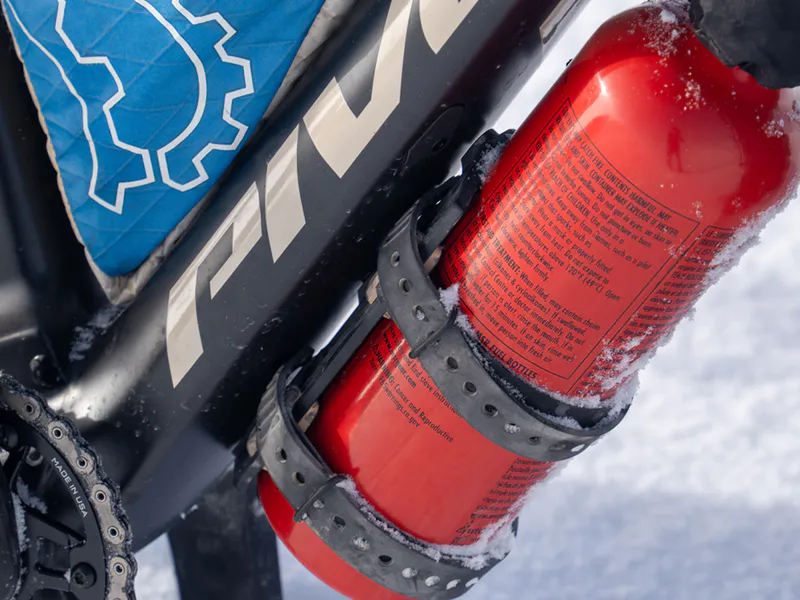

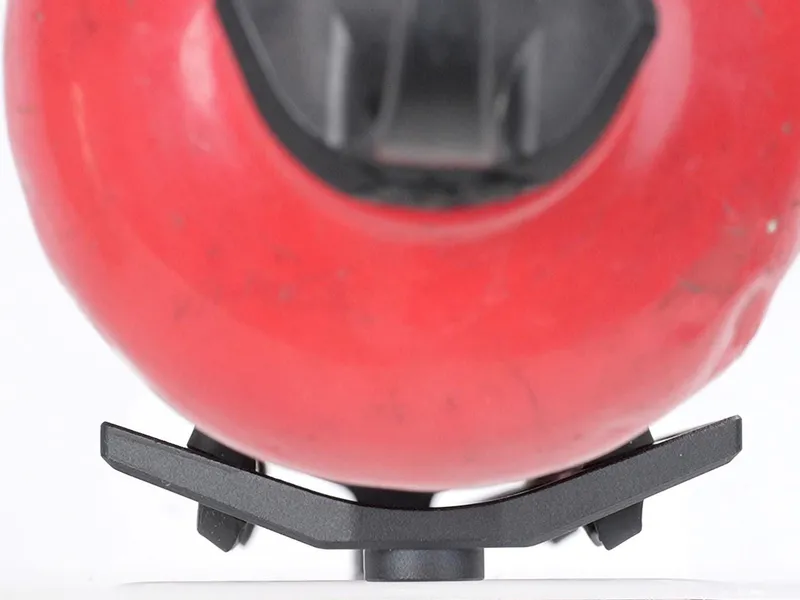

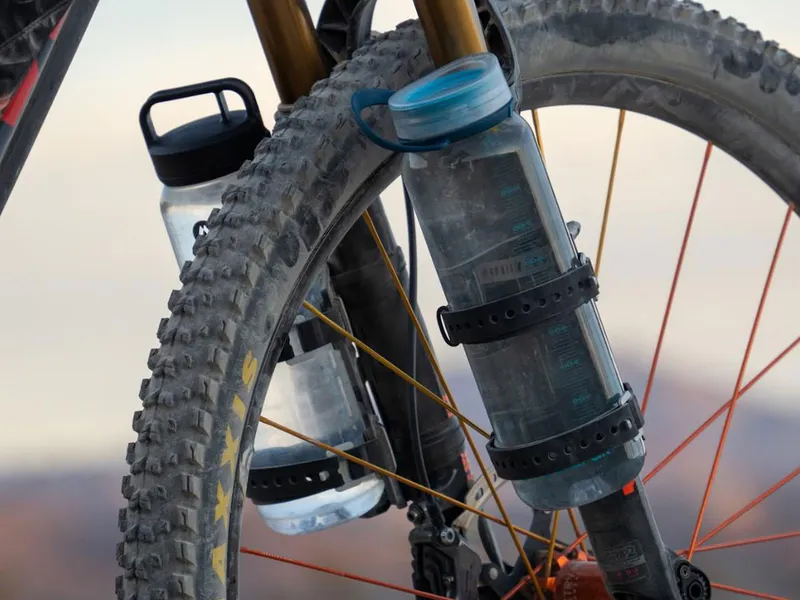

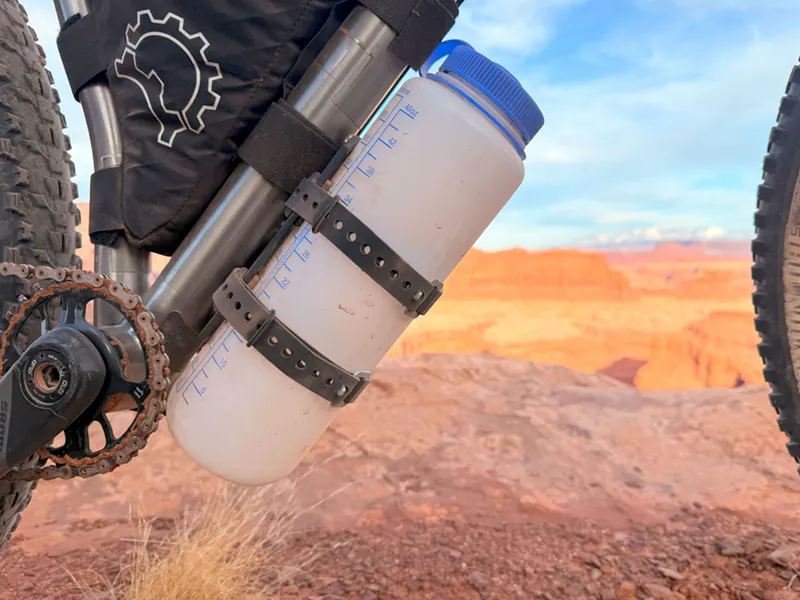

Integrated Pads – Soft moulded pads provide grip and wear protection for hard sided objects. The pads can be set to different positions to accommodate both large and small diameter water and fuel bottles.

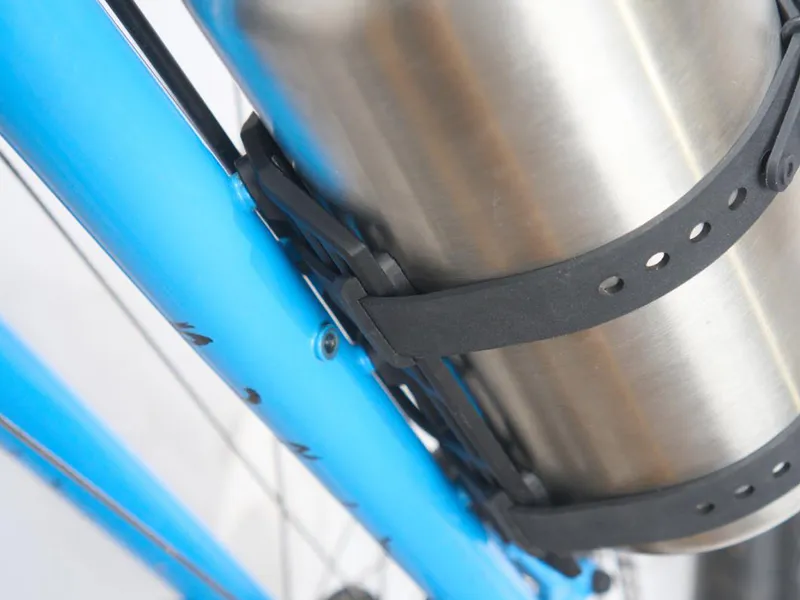

Strap Guides – Integrated strap guides keep straps secure to the cage. They allow the straps to fully wrap around the aluminium frame, maximising the effective cage width.

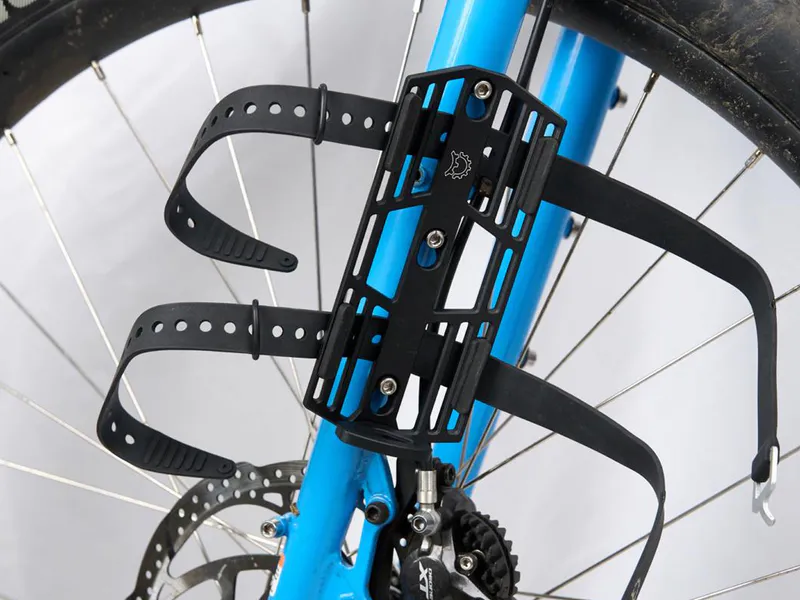

Easy Installation – Three key-slot bolt holes make transitions easy: mounting bolts never need to be fully removed.

Removable Foot – With the lower foot uninstalled, the Tarsier is optimised for extra long cargo. With no loose hardware to keep track of, it’s also an ideal minimal setup.

Strong and Durable Construction – Machined from 6061-T6 aluminum for a premium, hard-wearing cargo platform.

Straps included – Comes with a pair of 450mm straps which are the perfect length for most loads.


"For a seemingly simple cargo cage, the Revelate Tarsier packs in a surprising number of new and well-thought-out features." - Bikepacking.com

Read the full review at Bikepacking.com

Features

• Grippy, movable TPU pads
• Integrated strap guides
• Removable foot
• Key slotted bolt mounts
• Machined construction
• 450mm TPU Washboard Straps included



Fit

• 3 pack mounting bolts are required
• Weight limit is dependent on frame / fork design and material, we highly recommend consulting with your bicycle manufacturer for load limitations and make no claim to load limitations
• Mounting System: 3 Bolts with keyed slots
• Included Accessories: Two 450mm Washboard TPU straps



Specifications

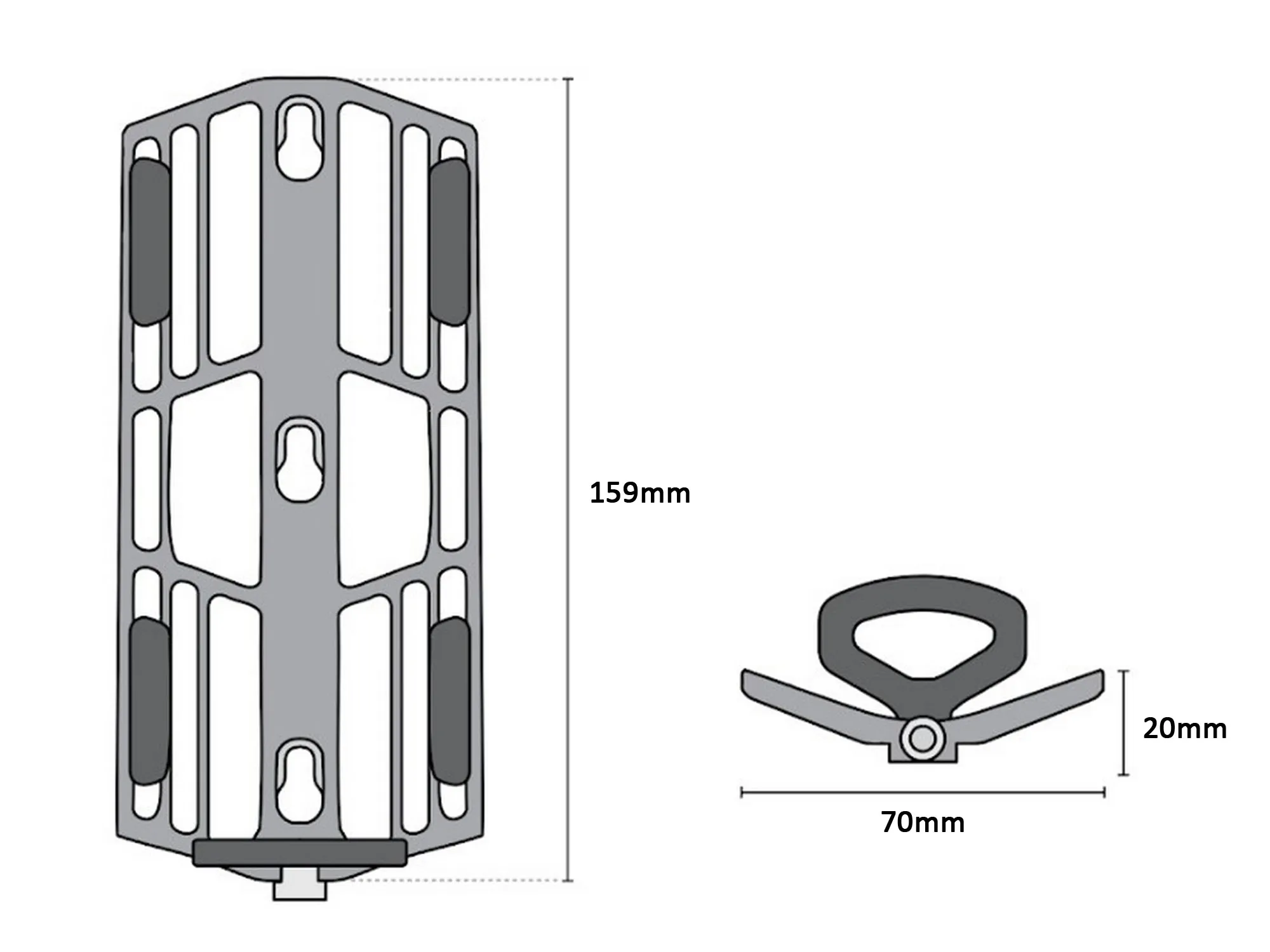

Dimensions:  Height 159mm, width 70mm, depth 20mm, foot extends 15mm for total depth 35mm
Weight:  77g without straps, 125g including straps
Materials:  6061-T6 Aluminum
