SP Dynamo Hub Connector Set
Suitable for all SP Dynamo hubs
Male / Female connector set for SP Dynamo hubs.
How do I connect my wires to the hub?

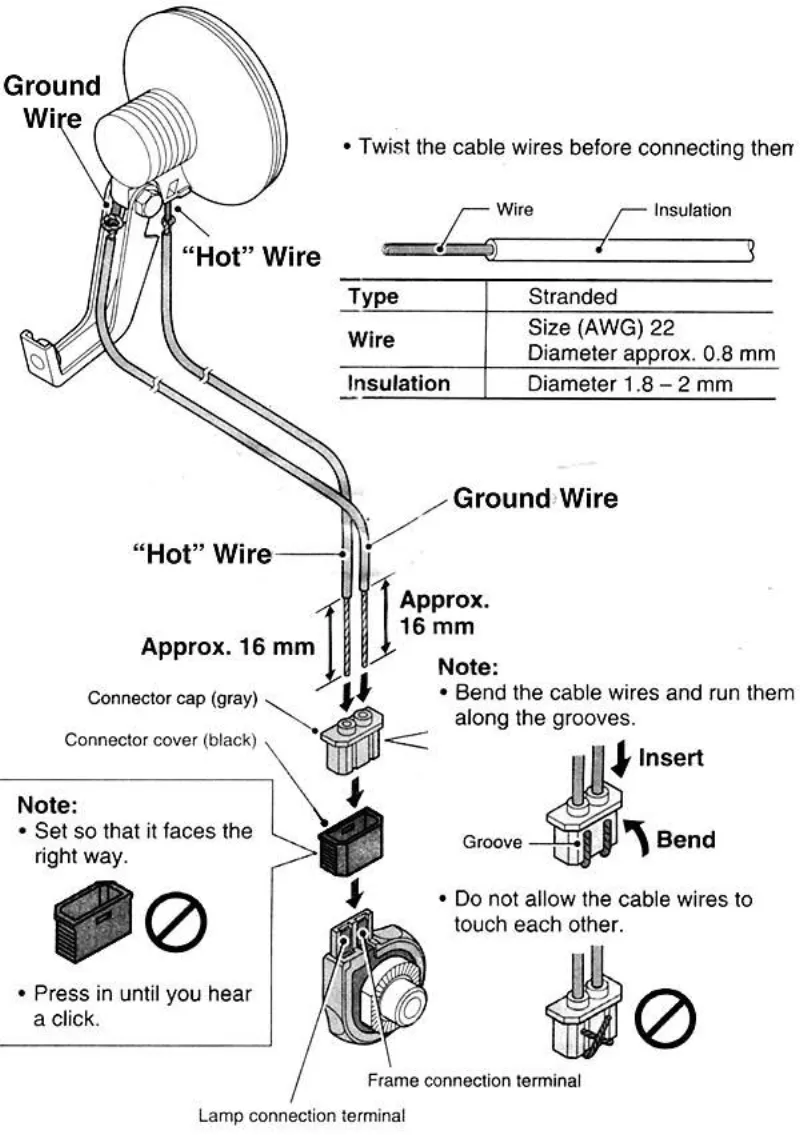

- Follow this diagram to connect a single device (one headlight or one charger)
- To connect two devices, you want to connect them to the hub in parallel
- Strip about 20mm of insulation from all 4 wires
- Take one charger wire and one headlight wire and twist them together
- Twist together the remaining two wires
- Use these two combined wires to make the connection the same way as with one device
