Revelate Designs Ranger Frame Bag

Full size bag for mountain bike geometry



$319.90incl GST

The Ranger is a workhorse of a frame bag. Designed to make use of the full triangle, the Ranger fits a huge range of standard mountain bike geometries. Rangers are richly featured bags that offer cost and time savings over custom-made bags.

Named Best in Bikepacking in's Gear of the Year Awards.

Ranger Features

  • Revelate exclusive RevX-PAC panels that are 2 times as abrasion resistant as standard VX material.

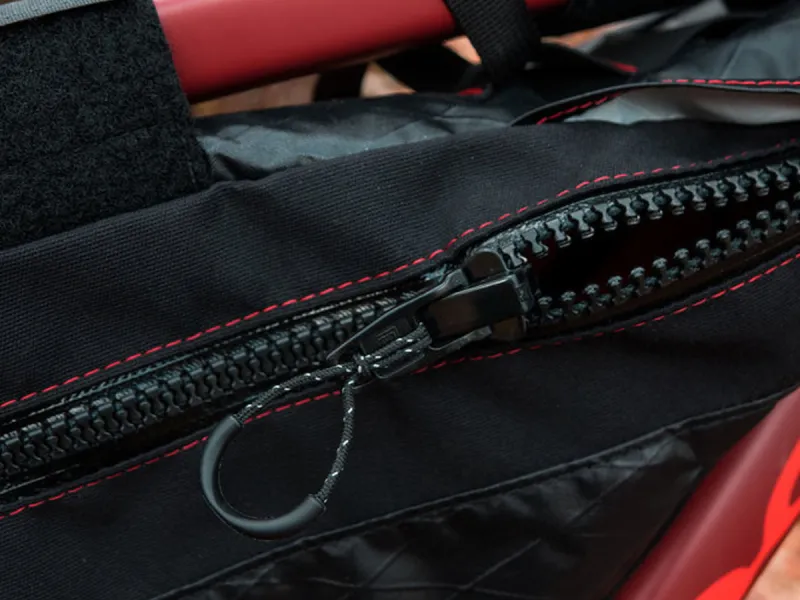

  • Zipstretch™ construction pairs a bomber, wetsuit style moulded-tooth zipper with our exclusive stretch Cordura panels above and below the zipper that significantly reduce zipper stress when closing bag
  • Industry leading #10 moulded tooth zippers with urethane coated tape are basically impervious to dirt and grit that destroy more commonly used water resistant coil zippers.

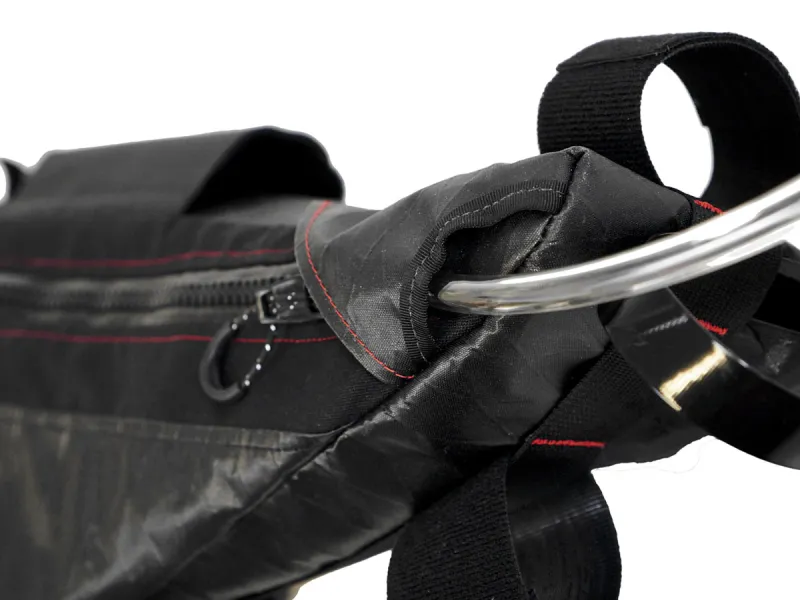

  • Exit port in main compartment for hydration tube or battery wire
  • Bags feature one main compartment with vertical divider
  • Expanding taper front section for increased volume at head tube

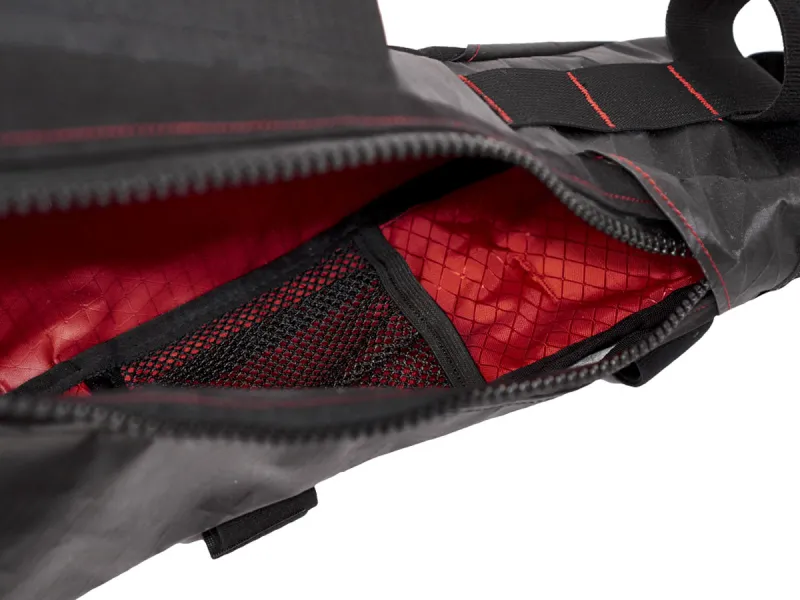

  • Stretch mesh internal pocket
  • Front top tube attachments accommodate top tube packs


Weight: SM: 340g, MD: 369g, LG: 425g, XL: 482g

Volume: SM: 6L, MD: 7.3L, LG: 8.6L, XL: 10L

Materials:  VX21 X-pac; 1050 denier domestic ballistics nylon; 420 denier diamond ripstop lining; closed cell foam padded tube sections.


Size Chart

Printable A4 full size sizing chart pattern - PDF, all sizes.  Please print on A4 paper at 100%, no scaling and check the 2cm test square printed on page 1.

Please check sizing chart for detailed dimensions and compare to measurements taken from your frame.


Ranger Sizing.

(Dimensions in mm)

A 419 470 508 546
B 25 32 32 44
C 413 445 476 521
D 83 89 95 95
E 203 260 298 349
